Forest Fire Prevention Monitoring Communication Towers: Design, Materials, and Applications
Abstract
Forest fires pose a significant threat to ecosystems, human lives, and property worldwide, necessitating advanced monitoring systems to enable early detection and rapid response. Communication towers designed for forest fire prevention integrate sensors, cameras, and wireless networks to monitor environmental conditions in real-time. This article explores the design parameters, material selections, and customization options for these towers, emphasizing their role in enhancing fire prevention efforts. Comparative tables evaluate tower types—lattice, monopole, and guyed—based on cost, durability, and installation feasibility. The analysis highlights how tailored designs and robust materials can optimize tower performance in diverse forest environments, offering insights into their practical application and future development.
1. Introduction
Forest fires have escalated in frequency and intensity due to climate change, human activity, and prolonged droughts, with devastating impacts on biodiversity and economic stability. In 2025 alone, wildfires have consumed millions of hectares globally, underscoring the urgent need for effective prevention strategies. Traditional methods, such as human observation from lookout towers, are increasingly inadequate in vast, remote areas. Modern forest fire prevention monitoring communication towers address this gap by providing elevated platforms for sensors, cameras, and communication systems, enabling continuous surveillance and data transmission.
These towers must withstand harsh environmental conditions—high winds, extreme temperatures, and corrosion—while supporting advanced monitoring equipment. This article examines their design parameters (e.g., height, wind resistance), material options (e.g., steel, aluminum), and customization capabilities. A comparative analysis contrasts different tower configurations, offering a comprehensive guide for stakeholders in forestry, emergency management, and infrastructure development.
2. Design Parameters of Monitoring Communication Towers
The design of forest fire prevention towers is guided by specific parameters to ensure functionality, safety, and longevity. Table 1 outlines key parameters and their typical ranges.
| Parameter | Typical Range | Description |
|---|---|---|
| Height | 10–100 m | Determines coverage area; taller towers monitor larger regions. |
| Wind Speed Resistance | 25–40 m/s | Ensures stability in high-wind forest zones. |
| Load Capacity | 200–1000 kg | Supports sensors, cameras, antennas, and solar panels. |
| Temperature Range | -35°C to 45°C | Adapts to seasonal extremes in forest climates. |
| Grounding Resistance | ≤4 Ω | Protects against lightning strikes common in forests. |
| Vertical Deviation | <1/1000 | Maintains structural integrity under load. |
2.1 Height and Coverage
Tower height directly impacts the line-of-sight range for cameras and sensors. A 30-meter tower can monitor a radius of approximately 10–15 km in flat terrain, while taller structures (e.g., 80–100 m) are suited for mountainous regions, extending coverage to 30–50 km. Height customization depends on forest density and topography.
2.2 Wind and Seismic Resistance
Forests in fire-prone areas often experience strong winds (25–40 m/s) and occasional seismic activity (up to 8° intensity). Towers must be engineered with aerodynamic profiles and reinforced foundations to withstand these forces, ensuring uninterrupted operation during critical fire seasons.
2.3 Load and Environmental Adaptation
Load capacity accommodates equipment like thermal cameras, smoke detectors, and wireless transceivers (e.g., ZigBee, LoRaWAN). Towers must also endure temperature fluctuations and humidity, with materials and coatings selected to prevent corrosion and thermal stress.
3. Material Options for Tower Construction
Material choice influences durability, cost, and maintenance. Table 2 compares common materials used in tower fabrication.
| Material | Strength (MPa) | Weight (kg/m³) | Corrosion Resistance | Cost ($/ton) |
|---|---|---|---|---|
| Galvanized Steel | 350–550 | 7850 | High (with coating) | 800–1200 |
| Aluminum Alloy | 200–300 | 2700 | Excellent | 2000–2500 |
| Stainless Steel | 500–700 | 8000 | Excellent | 2500–3000 |
| Composite (FRP) | 150–400 | 1800 | Superior | 3000–4000 |
3.1 Galvanized Steel
Galvanized steel, coated with zinc to resist rust, is the most common material due to its strength (350–550 MPa) and affordability ($800–$1200/ton). It’s ideal for tall, load-bearing towers but requires periodic inspection in humid forests.
3.2 Stainless Steel
Stainless steel provides superior strength (500–700 MPa) and corrosion resistance, making it suitable for extreme climates. Its high cost ($2500–$3000/ton) restricts its use to critical installations requiring minimal upkeep.
4. Customization Capabilities
Forest fire monitoring towers can be tailored to specific needs, enhancing their effectiveness. Customization options include:
- Height Adjustment: From 10 m for small forests to 100 m for expansive wilderness.
- Equipment Integration: Mounting thermal cameras, drones, or solar panels based on monitoring goals.
- Foundation Design: Concrete pads for stable soils or deep piles for rocky terrains.
- Coating Selection: Anti-corrosion paints or galvanization for regional climate conditions.
- Modular Assembly: Prefabricated sections for rapid deployment in remote areas.
These adaptations ensure towers meet local environmental and operational demands, such as integrating LoRaWAN for long-range communication in dense forests or solar power in off-grid locations.
5. Comparative Analysis of Tower Types
Three primary tower configurations—lattice, monopole, and guyed—are used for forest fire monitoring. Table 3 compares their attributes.
| Type | Height Range (m) | Cost ($/m) | Wind Resistance (m/s) | Installation Time | Footprint (m²) |
|---|---|---|---|---|---|
| Lattice | 20–100 | 150–300 | 30–40 | 2–4 weeks | 10–20 |
| Monopole | 10–50 | 200–400 | 25–35 | 1–2 weeks | 2–5 |
| Guyed | 30–150 | 100–250 | 30–40 | 3–5 weeks | 50–100 |
5.1 Lattice Towers

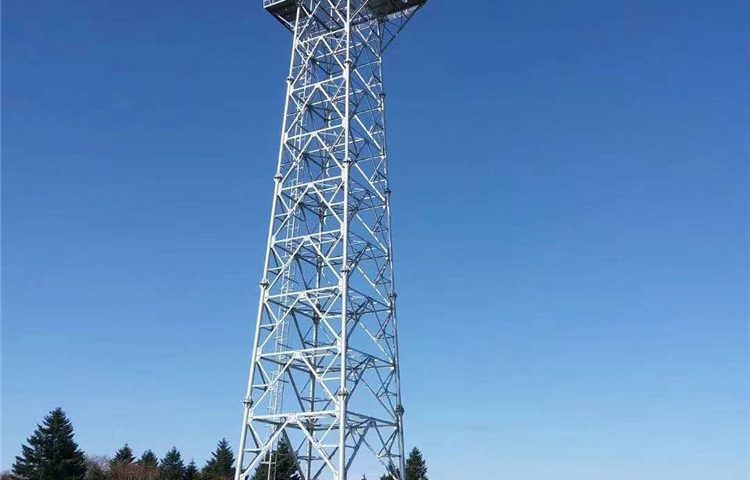

Lattice towers, constructed from angled steel, offer high strength and wind resistance (30–40 m/s), making them ideal for tall installations (20–100 m) in windy forest regions. Their moderate cost ($150–$300/m) and durability offset longer installation times (2–4 weeks).
5.2 Monopole Towers
Monopole towers, single steel or aluminum poles, are compact (2–5 m² footprint) and quick to install (1–2 weeks). Limited to 50 m in height and with lower wind resistance (25–35 m/s), they suit smaller forests but are costlier per meter ($200–$400).
5.3 Guyed Towers
Guyed towers, supported by cables, achieve heights up to 150 m at a lower cost ($100–$250/m). Their large footprint (50–100 m²) and complex installation (3–5 weeks) make them less practical in dense forests, though they excel in open, windy areas.
6. Application Value in Forest Fire Prevention
These towers serve as critical infrastructure for:
- Early Detection: Thermal cameras and smoke sensors identify fire outbreaks within minutes.
- Data Transmission: Wireless systems (e.g., 5G, LoRaWAN) relay real-time data to fire response teams.
- Remote Monitoring: Solar-powered towers operate in off-grid forests, reducing human intervention.
- Scalability: Networks of towers cover vast regions, enhancing regional fire management.
For example, a 50-meter lattice tower in a mountainous forest can support a 30-km radius surveillance system, integrating drones for rapid fire confirmation.
7. Challenges and Limitations
- Cost Variability: High initial investment for tall or custom towers ($10,000–$50,000).
- Maintenance: Remote locations complicate repairs, especially for steel corrosion.
- Topography: Uneven terrain increases foundation costs and installation complexity.
- Interference: Dense canopies may obstruct signals, requiring taller or additional towers.
8. Future Prospects
- Smart Integration: AI-driven analytics for predictive fire risk assessment.
- Material Innovation: Lightweight, durable composites to reduce costs and weight.
- Modular Designs: Faster deployment with prefabricated, expandable sections.
- Renewable Energy: Enhanced solar and wind power for sustainable operation.
Forest fire prevention monitoring communication towers are indispensable for modern wildfire management, offering robust platforms for surveillance and response. Their design parameters ensure stability and functionality, while material options like galvanized steel and aluminum balance cost and durability. Customization enables adaptation to diverse forest conditions, and comparative analysis reveals lattice towers as a versatile choice for most scenarios. By addressing challenges and embracing technological advancements, these towers can significantly enhance fire prevention efforts, safeguarding ecosystems and communities worldwide.
